ECS Twin 12L Flat-Bottom Steel Cylinder Set — 232 Bar

Choose unassembled components, or add Oceanauts setup and an initial air fill for £85 including VAT. The setup option is collection only.

Two 12-litre ECS steel cylinders with concave, flat-standing bases, paired with a DIRZone isolating manifold and V4Tec twinset bands.

Included components

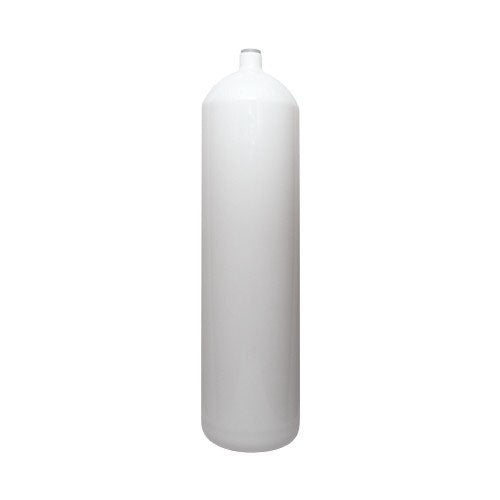

• 2 × ECS 12L 232 bar cylinders: M25 × 2 neck thread, 171mm diameter, 685mm length, approximately 14.5kg each

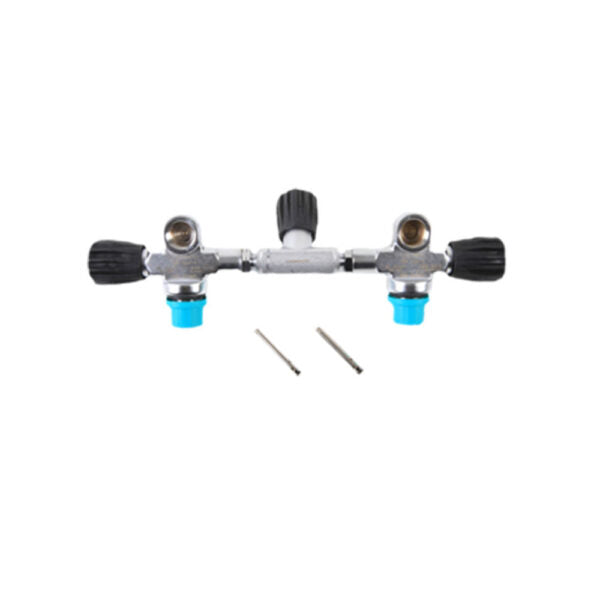

• DIRZone complete 232 bar isolating manifold for 171mm-diameter cylinders (71001)

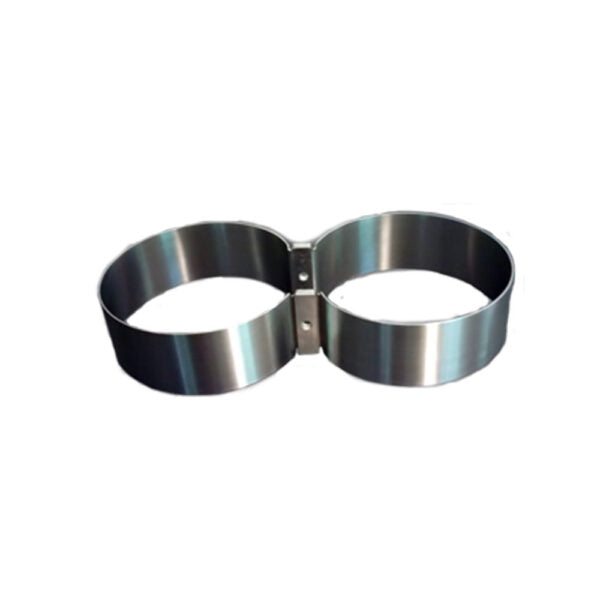

• V4Tec 171mm cylinder band kit with 185mm spacing and bolt kit (88171)

The package combines cylinders, manifold and bands; additional mono valves are not required.

Oceanauts setup & collection

Select “Oceanauts setup & air fill — collection only” to add £85 including VAT to the component package price. The displayed setup-option price includes this charge.

• Initial inspection of both cylinders
• Manifold installation, band assembly and alignment
• Contents stickers and leak check
• Initial air fill for both cylinders

Collection from Oceanauts only. Assembled, filled cylinders cannot be shipped. We will contact you when your order is ready; setup does not imply immediate collection. The listed manifold and bands are included. Oxygen cleaning and Nitrox fills are separate services.

Available to order — usually at Oceanauts within 1–2 working days when in stock with our UK supplier. This is the estimated time to reach Oceanauts, not delivery to your address. We will confirm supplier availability and your dispatch or collection timing. If you select Oceanauts setup and an air fill, collection will be arranged after inspection and assembly are complete.

Photos show the individual components: one ECS flat-bottom cylinder (two are included in the package), the complete DIRZone manifold, and the V4Tec band kit.
