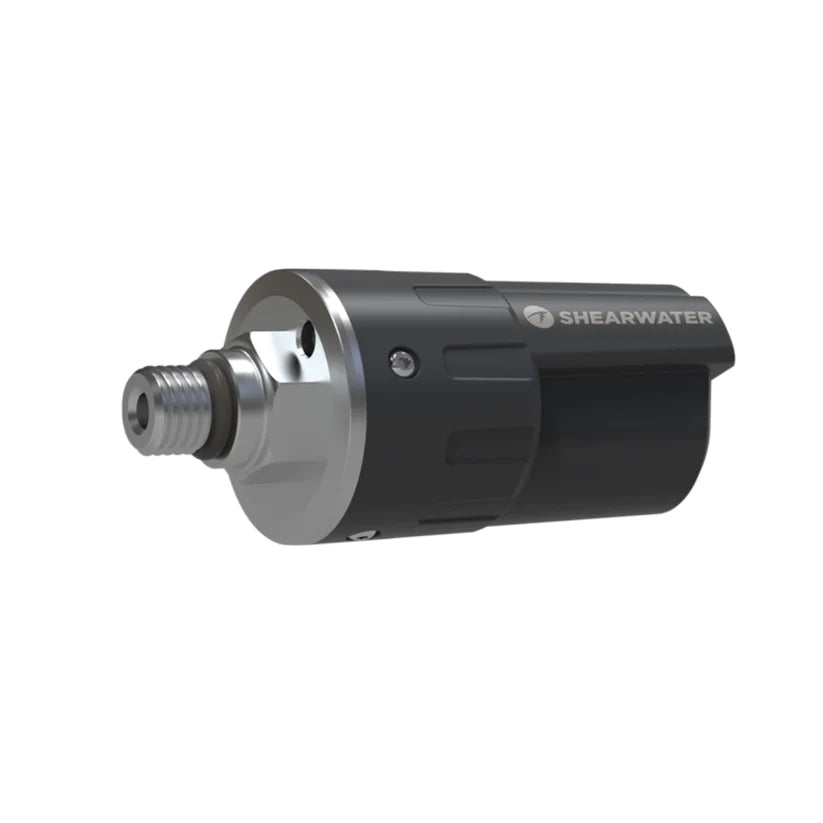

Swift Transmitter

The Swift transmitter is designed by Shearwater to enable divers to transmit current gas pressure to their compatible Shearwater Device.

Technical Specs

• An advanced collision avoidance system ensures reliability using multiple transmitters
• Randomized transmit interval allows for reliable simultaneous use of multiple Swift transmitters

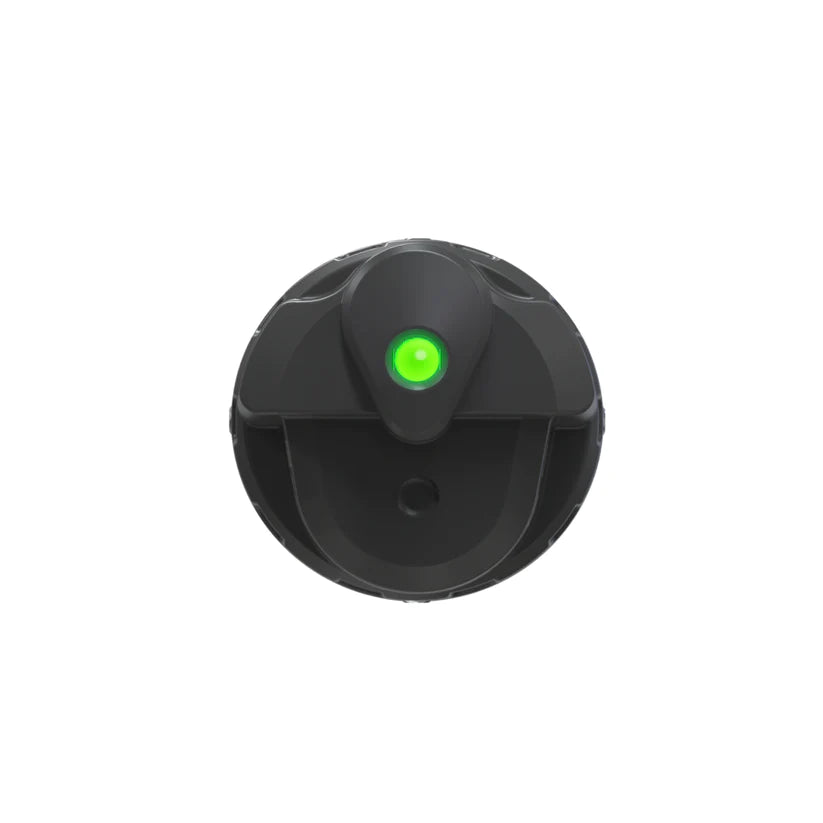

• LED status indicator
• Easy ‘no tools’ installation and removal on the divers first stage
• Compatible with all existing air-integrated Shearwater dive computers and many other computers already on the market

DIMENSION

• Size 76mm (L) x 34mm (D)
• Weight 135g

BATTERY

• Battery type CR2 3V Lithium (User replaceable)
• Battery operating life Up to 300 dive hours
• (HP pressure present)
• 5-year storage time

Additional Specs

• Depth limit 200msw
• Operating temperature range +4C to +34C
• Short-term (hours) temperature range -10C to +50C
• Pressure port 7/16" - 20NF
• Rated air pressure 300 bar/4350 psi
• Pressure reporting resolution 0.14 bar / 2 psi
• HP port proof pressure 450 bar / 6525 psi
• Accuracy 5% full scale
• Zero offset < 3.5 bar (50 psi)
• Activation pressure 7 bar (100 psi)
• De-activation pressure 3.5 bar (50 psi)
• Cover screws 1.5mm hex
• Body o-ring 24 x 1.5mm
• HP port o-ring AS568-904 75A
